Double Shaft Paddle Mixer

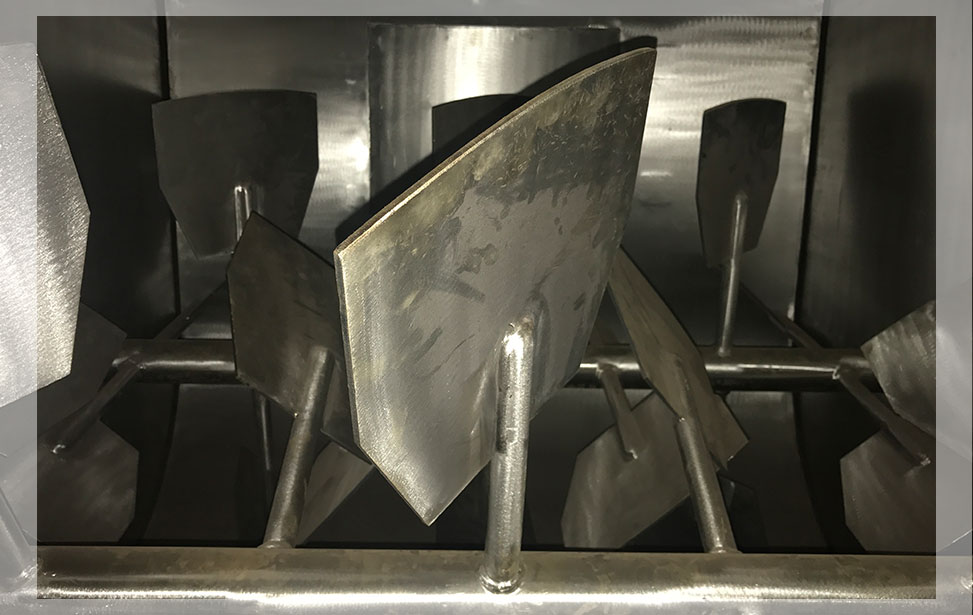

In this mixer two shafts fitted with fixed paddles are positioned in abouble U through housing. The two shafts rotate in opposite directions while the paddles on each shaft overlap in the center of the mixer. This creates a fluidized zone in the center resulting in a highly homogenous product after mixing. Recommended filling for efficient mixing is up to center of the shafts.

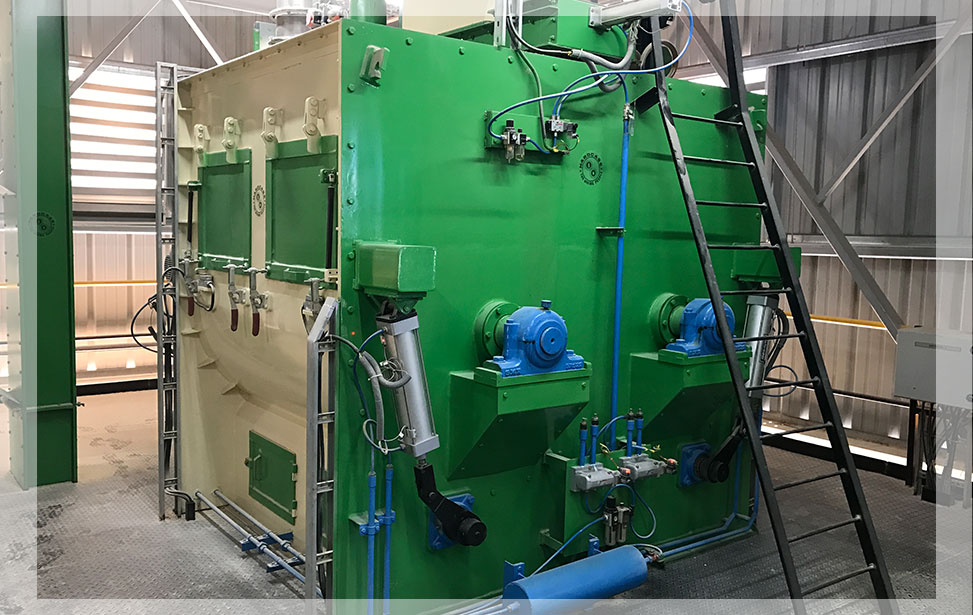

Product Photos
Features of Double Shaft Paddle Mixer
- Homogenous Mixing with an excellent CV.
- Reduced Mixing cycle of 2-3 minutes.
- Recommended for preparing of pre-mixes
- Optional Batch size of 10-140% possible
- Efficient emptying through two full length discharge outlets.

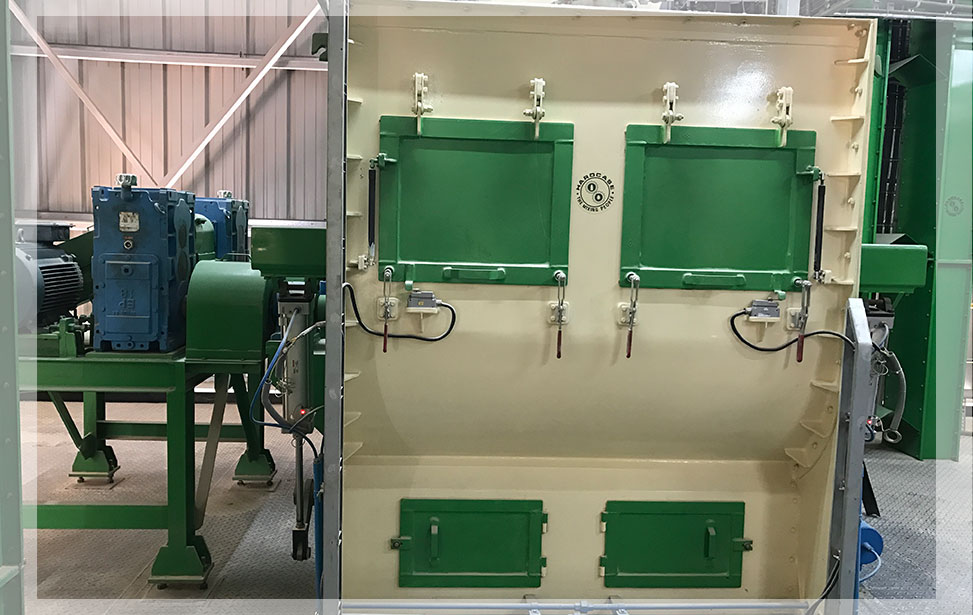

- Large inspection / cleaning doors for easy maintenance with safety switches.
- Addition of liquid constituents possible through PLC controlled dosing / manual system.

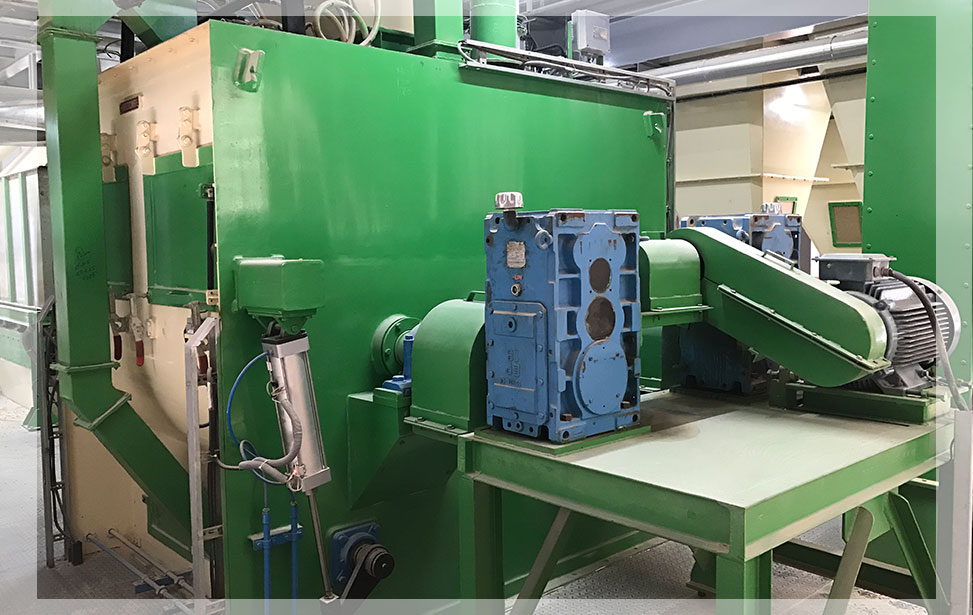

- Separate gearbox for each shaft driven by a single motor with chain drive possible.
- Variable frequency drive (VFD)* to enable starting of the machine on load in case of an unscheduled power outage
Double Shaft Paddle Mixer Models
| S.No | Model | Working Volume (Liters) | Drive | Capacity per Batch* |
|---|---|---|---|---|
| 1 | HDSP – 60/3 | 60 | 3HP (2.2KW) | 30 kg |
| 2 | HDSP – 120/3 | 120 | 5HP (3.7KW) | 60 kg |
| 3 | HDSP – 200/5 | 200 | 5HP (3.7KW) | 100 kg |
| 4 | HDSP – 200/5 | 200 | 5HP (3.7KW) | 100 kg |
| 5 | HDSP – 500/10 | 500 | 10HP (7.5KW) | 250 kg |
| 6 | HDSP – 1000/20 | 1000 | 20HP (15KW) | 500 kg |
| 7 | HDSP – 2000/30 | 2000 | 30HP (22.5KW) | 1000 kg |
| 8 | HDSP – 3600/50 | 3600 | 50HP (37.5KW) | 2000 kg |
*Capacity is based on Bulk density of 0.55 tons/cu.mtr.
